10/100 Base-T Pulse Transformer (SMD)

Download Datasheet

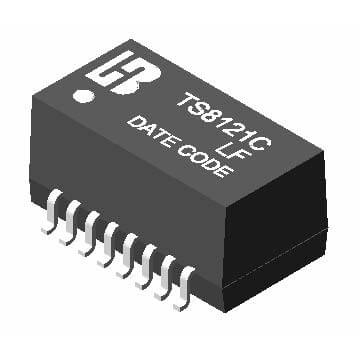

TS8121C LF
TS8121C LF
  • Designed to meet IEEE 802.3u requirement, including 350uH OCL with 8mA bias.
  • Comply with ROHS & Halogen Free requirements.
  • Operating temperature range: 0°C to +70°C.
  • Storage temperature range: -25°C to +85°C.



Package TypeSMD
 Transmission Speed 10/100 Base-T
 Operating Temperature Range –0℃ to +70℃
 Storage Temperature Range -25℃ to +85℃

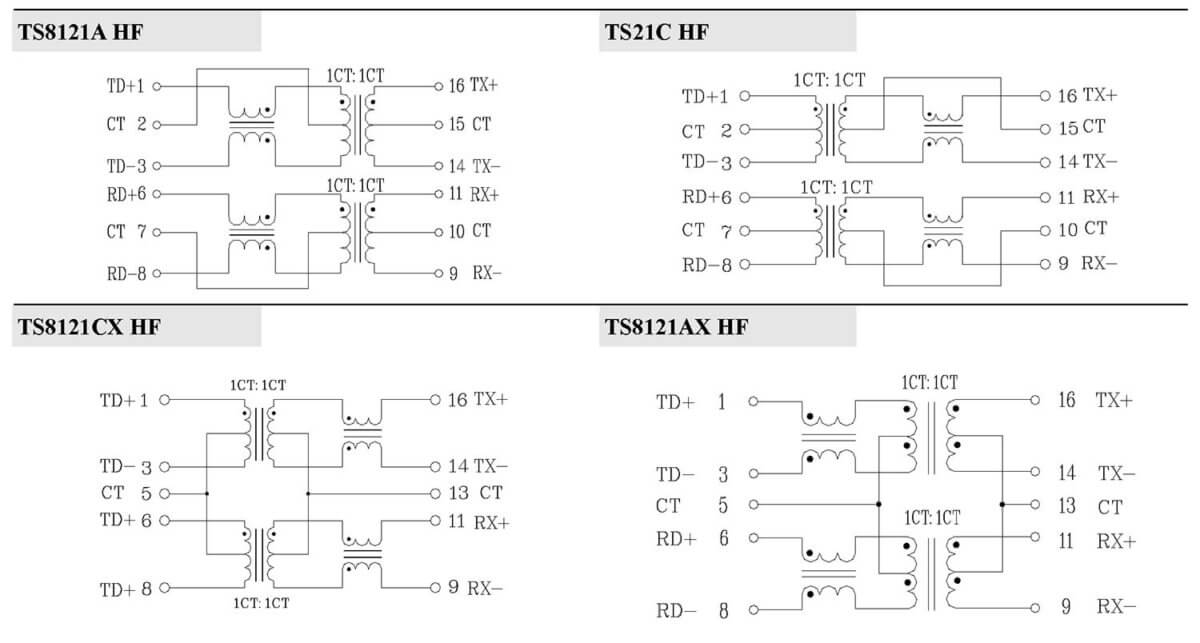

Schematic Diagrams

ts81xxx hf series schematic

ts81xxx hf series schematic

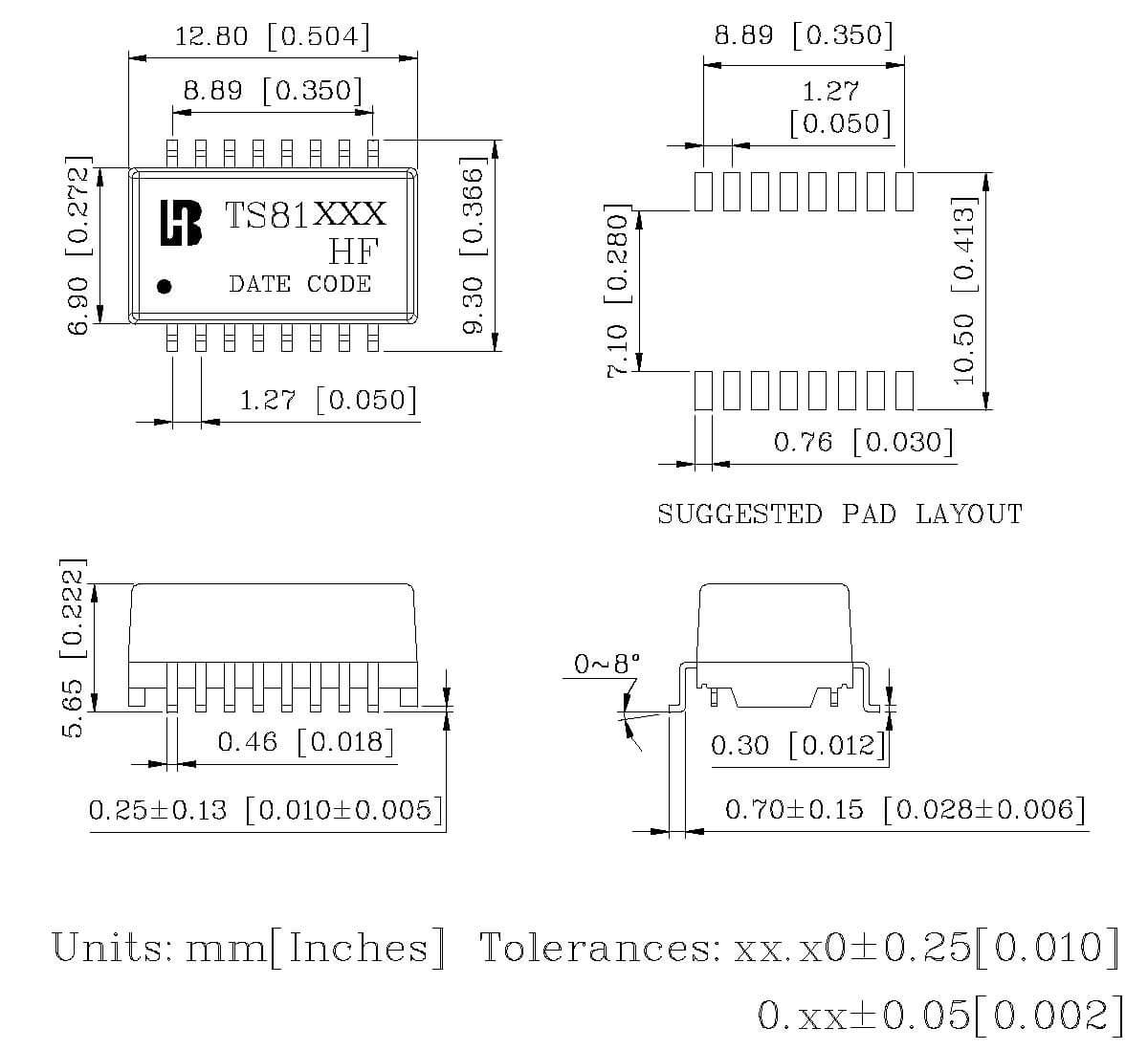

Mechanical Drawing

ts81xxx hf series mechanical
