1000 Base-T Magnetics Module

Download Datasheet

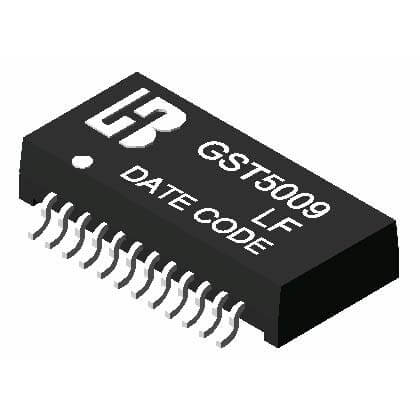

GST5009 LF
GST5009 LF
  • Designed for long haul gigabit Ethernet 1000 BASE-T, full duplex applications.
  • Supports 4 pairs of category 5 UTP cable.
  • Cable interface for isolation and low common mode Emissions.
  • Compliant with IEEE 802.3ab standard for 1000 BASE-T.
  • Comply with RoHS requirements-whole part No Cd, No Hg, No Cr6+, No PBB and PBDE and No Pb on external pins.
  • Operating temperature range: 0℃ to +70℃.
  • Storage temperature range: -25℃ to +125℃.



 Package Type SMD
 Transmission Speed 1000 Base-T
 Operating Temperature Range 0℃ to +70℃
 Storage Temperature Range -25℃ to +125℃

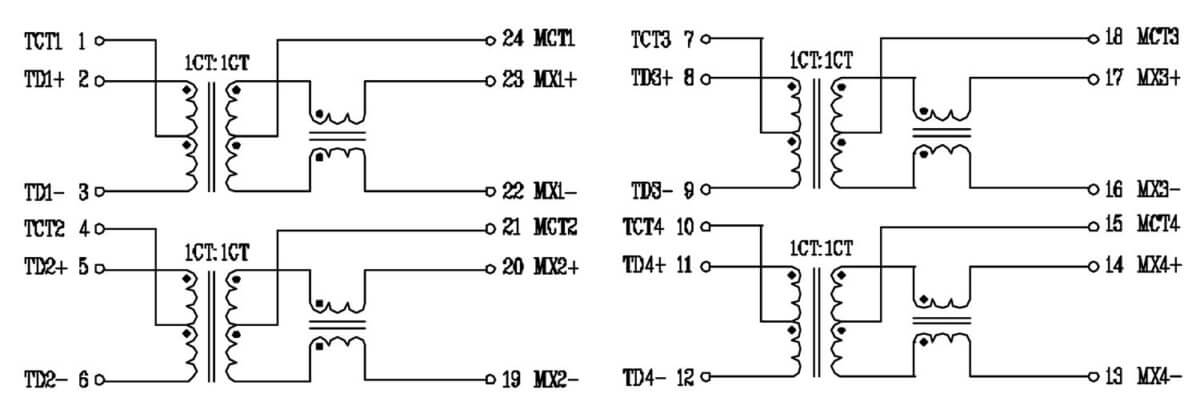

Schematic Diagram

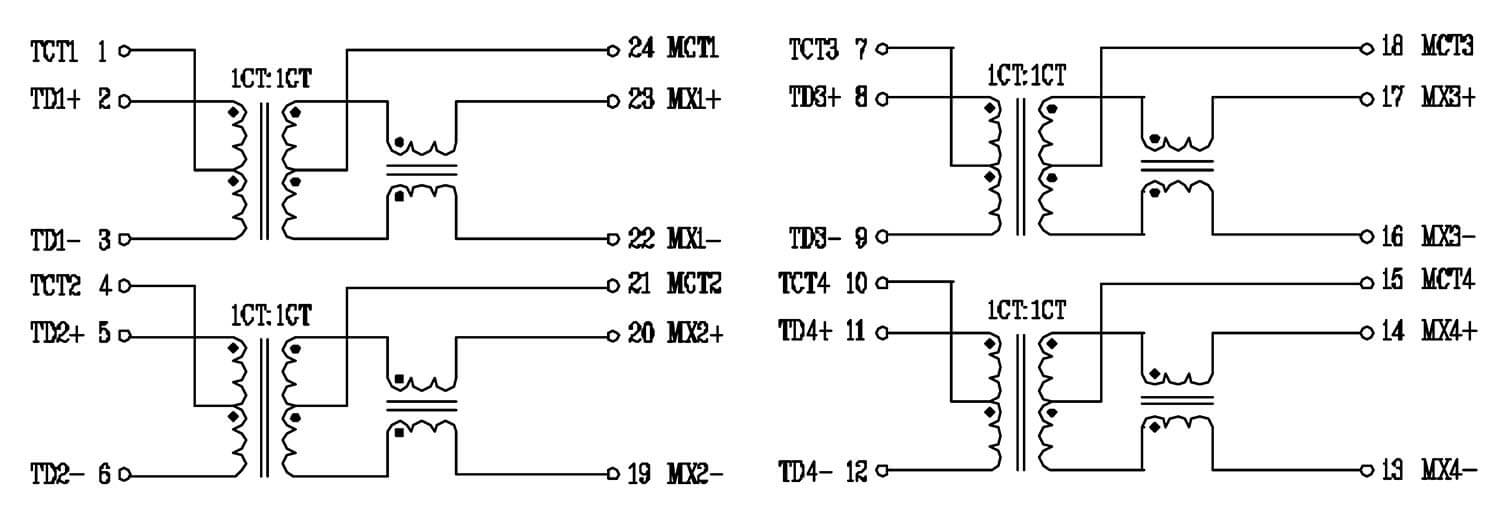

gst5009 lf schematic

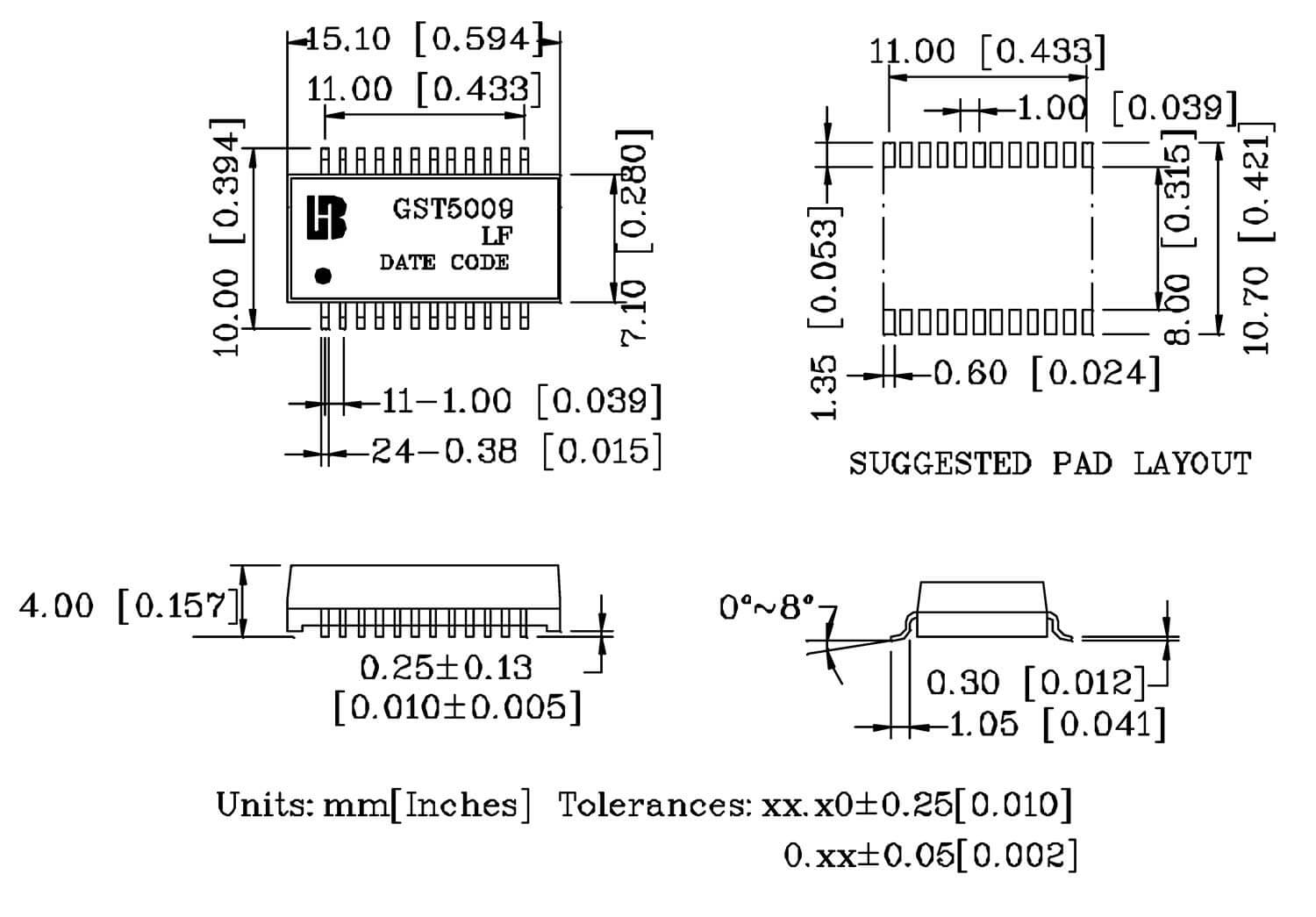

Mechanical Drawing

gst5009 mechanical
