1000 Base-T Magnetics Module

Download Datasheet
GST5009BM LF
GST5009BM LF
  • Designed for long haul gigabit Ethernet 1000 BASE-T, full duplex applications.
  • Supports 4 pairs of category 5 UTP cable.
  • Cable interface for isolation and low common mode Emissions.
  • Compliant with IEEE 802.3ab standard for 1000 BASE-T.
  • Compliant with RoHS & Halogen free requirements.
  • Operating temperature range: -40℃ to +85℃.
  • Storage temperature range: -40℃ to +85℃.



 Package Type SMD
 Transmission Speed 1000 Base-T
 Operating Temperature Range -40℃ to +85℃
 Storage Temperature Range -40℃ to +85℃

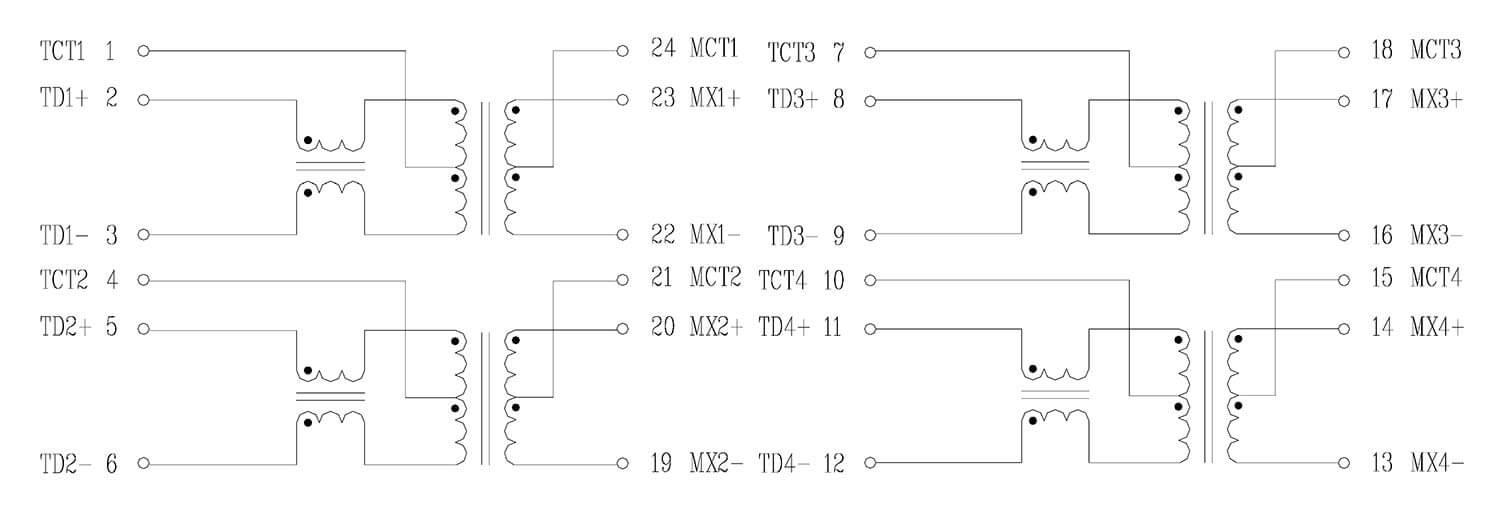

Schematic Diagram

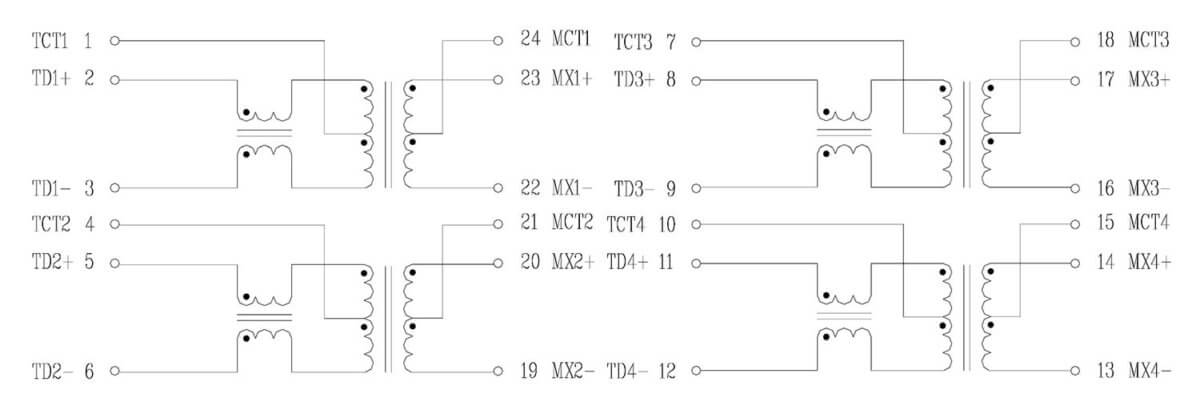

gst5009bm lf schematic

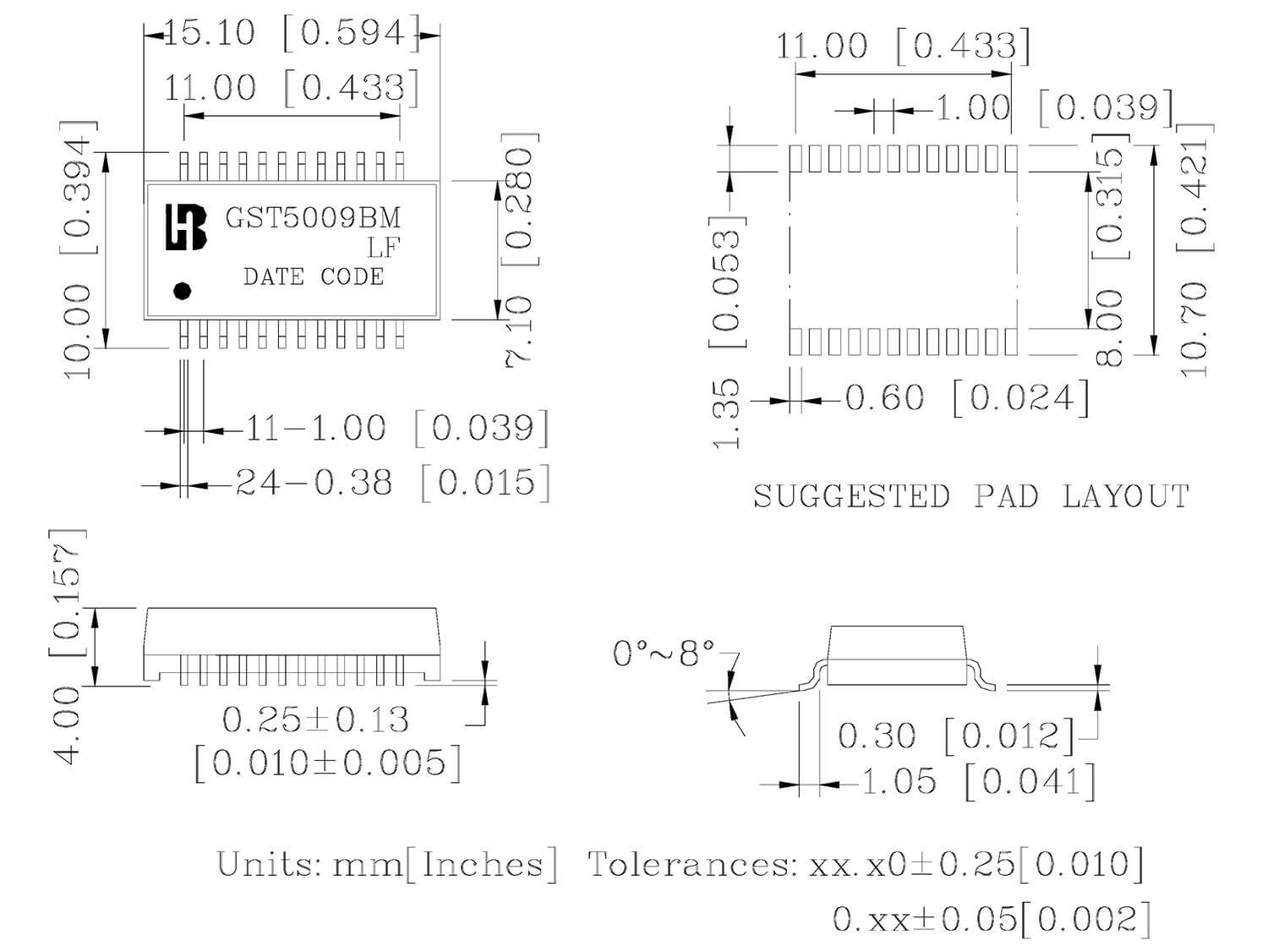

Mechanical Drawing

gst5009bm lf mechanical
